Input Voltage: DC 12V

LED Type:  SMD 3528

LED Density: 36 LEDs @ 50cm (1.64ft)

Beam Angle: 120 Degree

Dimension: 500x12x7(mm)

Lumen Output: 180-225lm



Power Consumption:3.6W @ 12V DC

Waterproof Type: Waterproof IP65

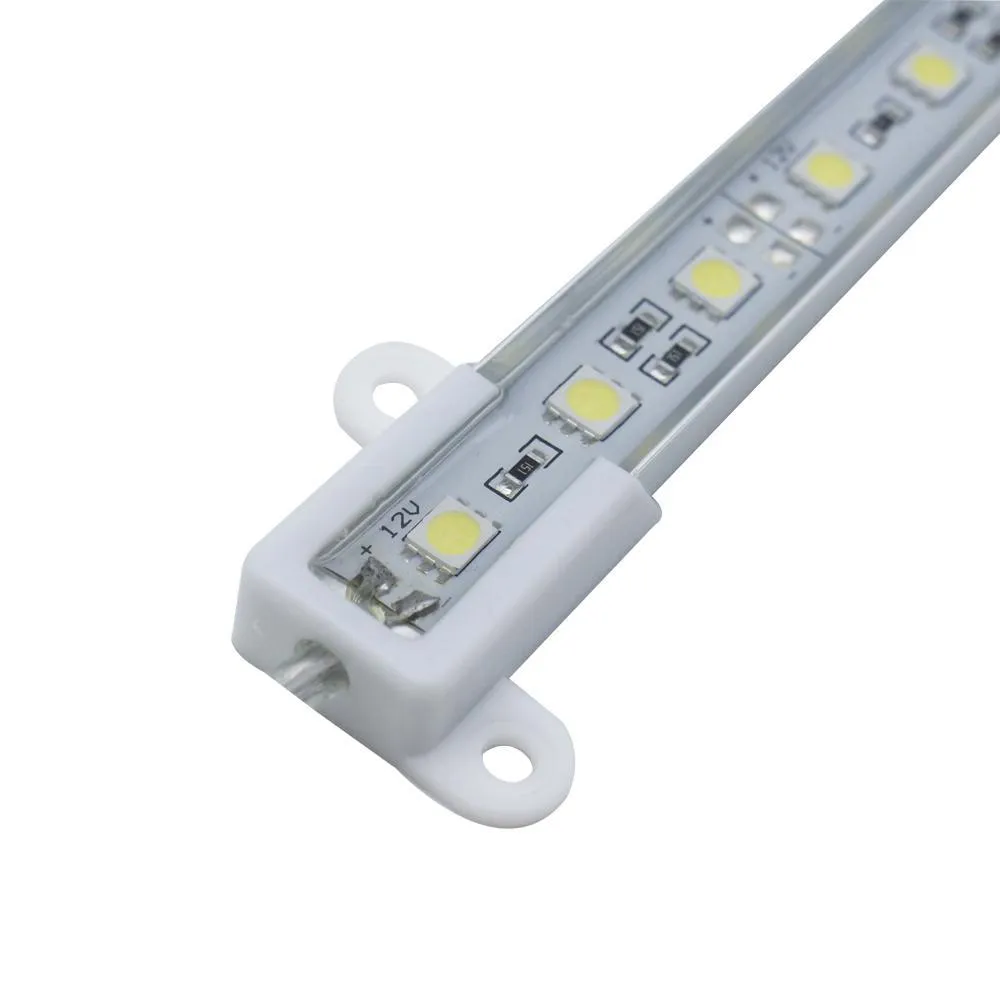

This product adopts 36 pcs Super Bright SAMSUNG SMD 5630 LEDs at luminous housing

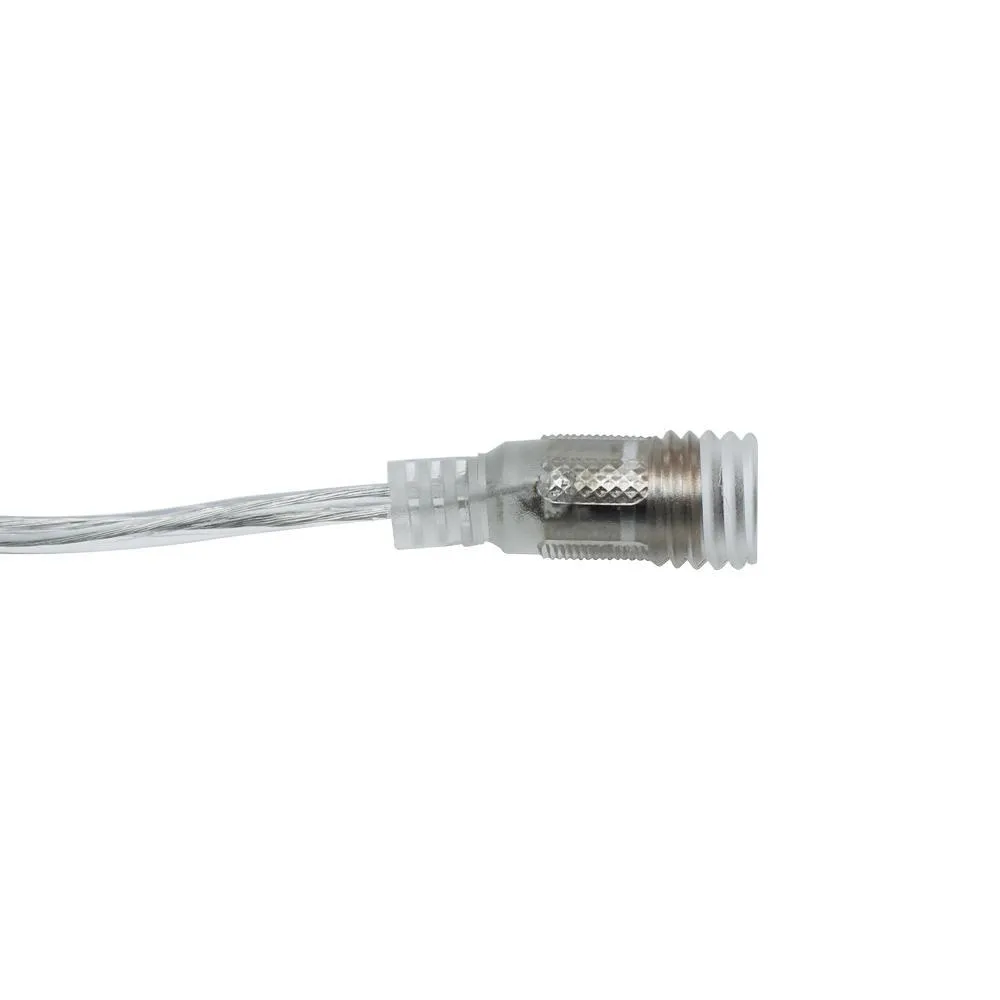

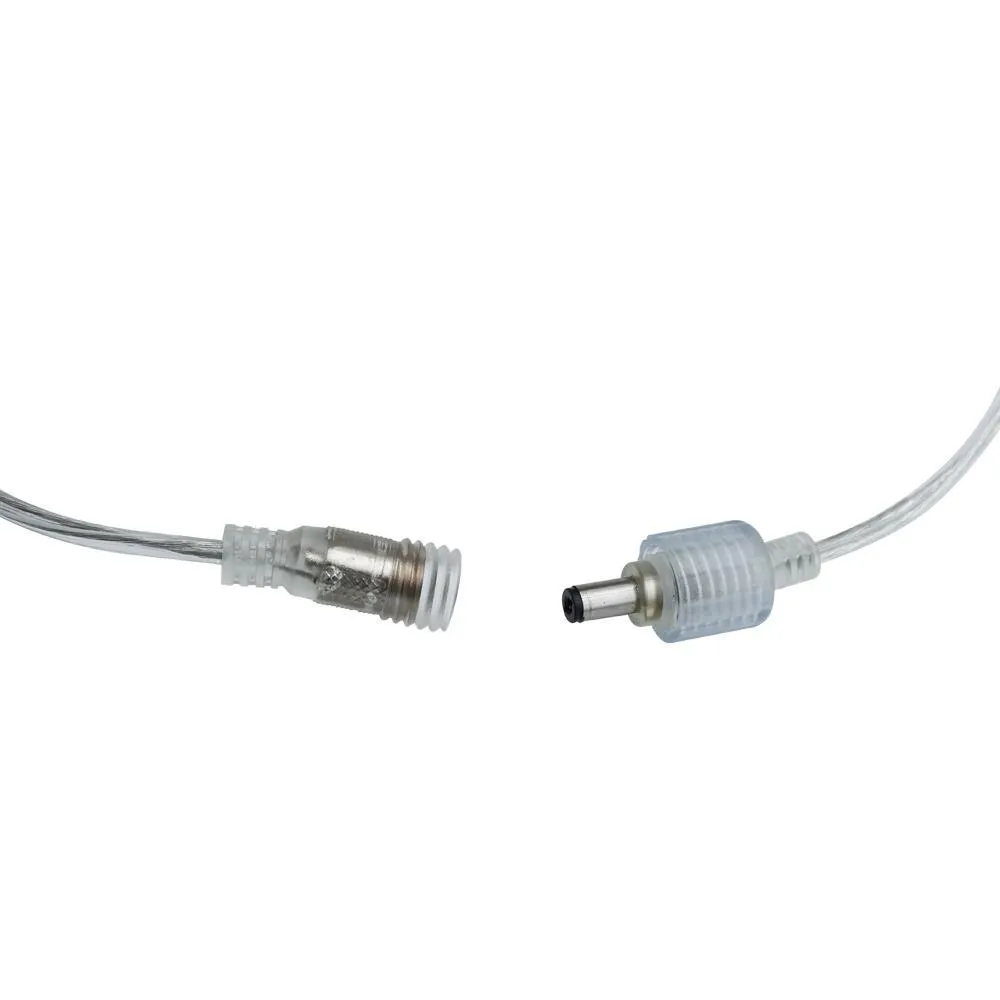

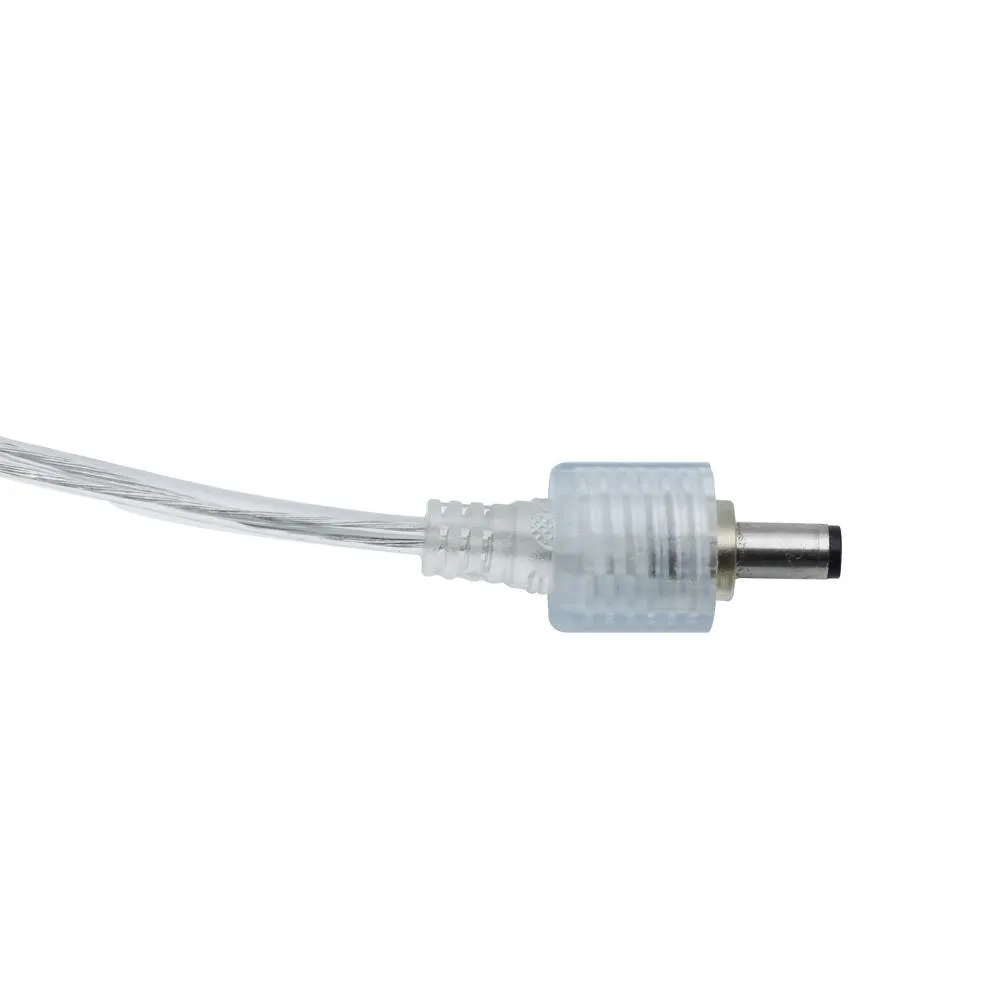

The wires come out from both ends with waterproof connector. You can extend to connect more pieces into a run by plug in.

Run less than 5pcs per string as if too long a string, voltage dropping will cause color difference.

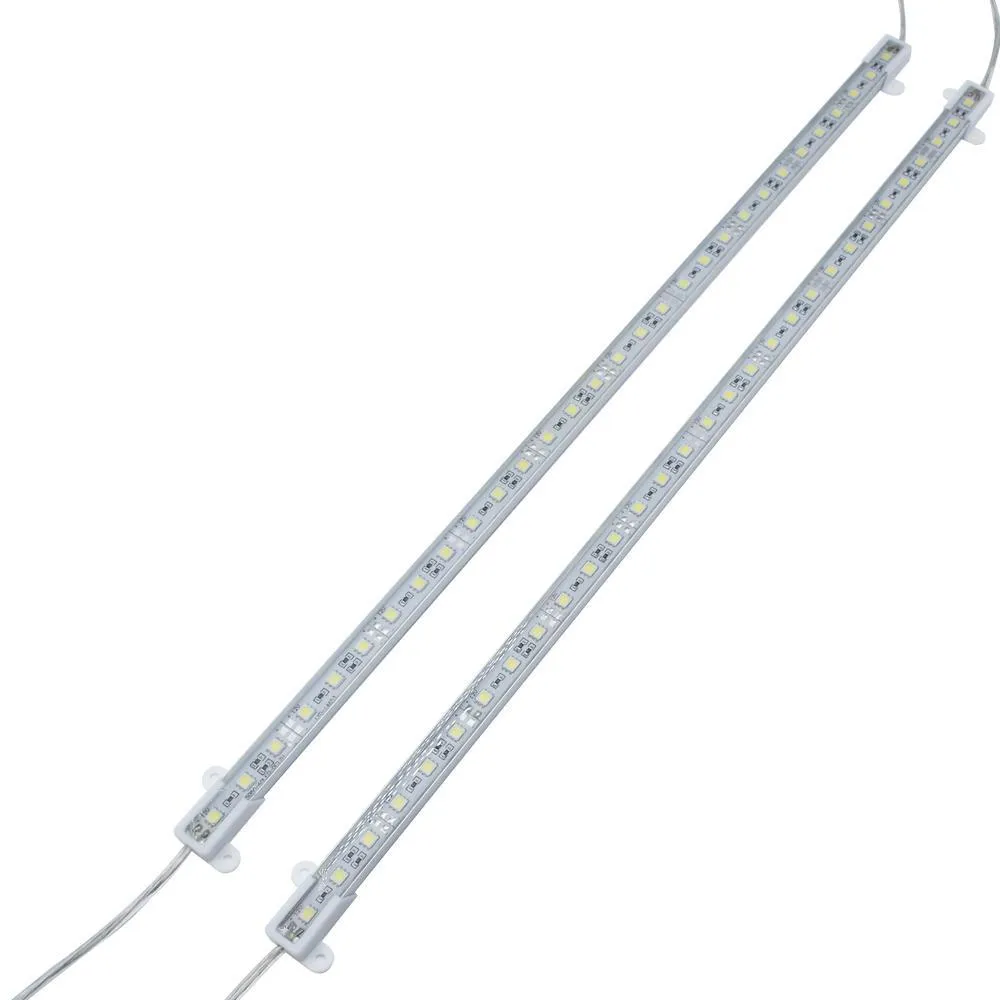

The product adopts 36 pcs Single chip SMD 3528 LED as luminous body.The wires come out from both ends with waterproof connector.
Available color:Red,Green,Blue,Yellow,Pure White,Warm White

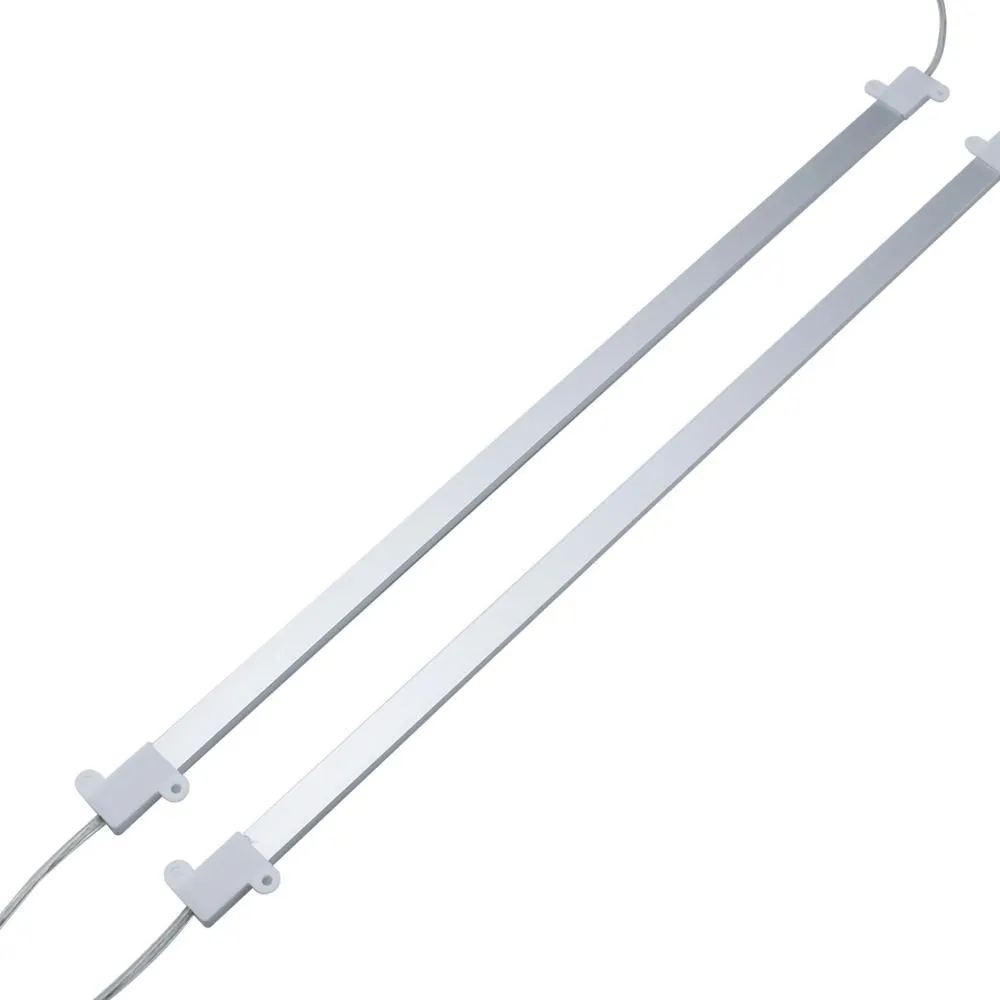

Aluminum Alloy outer shell, sealed transparent glue Inside.
Dimension: 500*12*7mm.
Working condition:DC12V, current 0.2A, power 3.6W
Waterproof IP rank: IP65.
Widely used for advertising decoration, interior decoration, local lighting, etc.

Light output: 180-225 lumen / bar (Pure whtie)

Note:
1. Accessory: 4pcs Screw

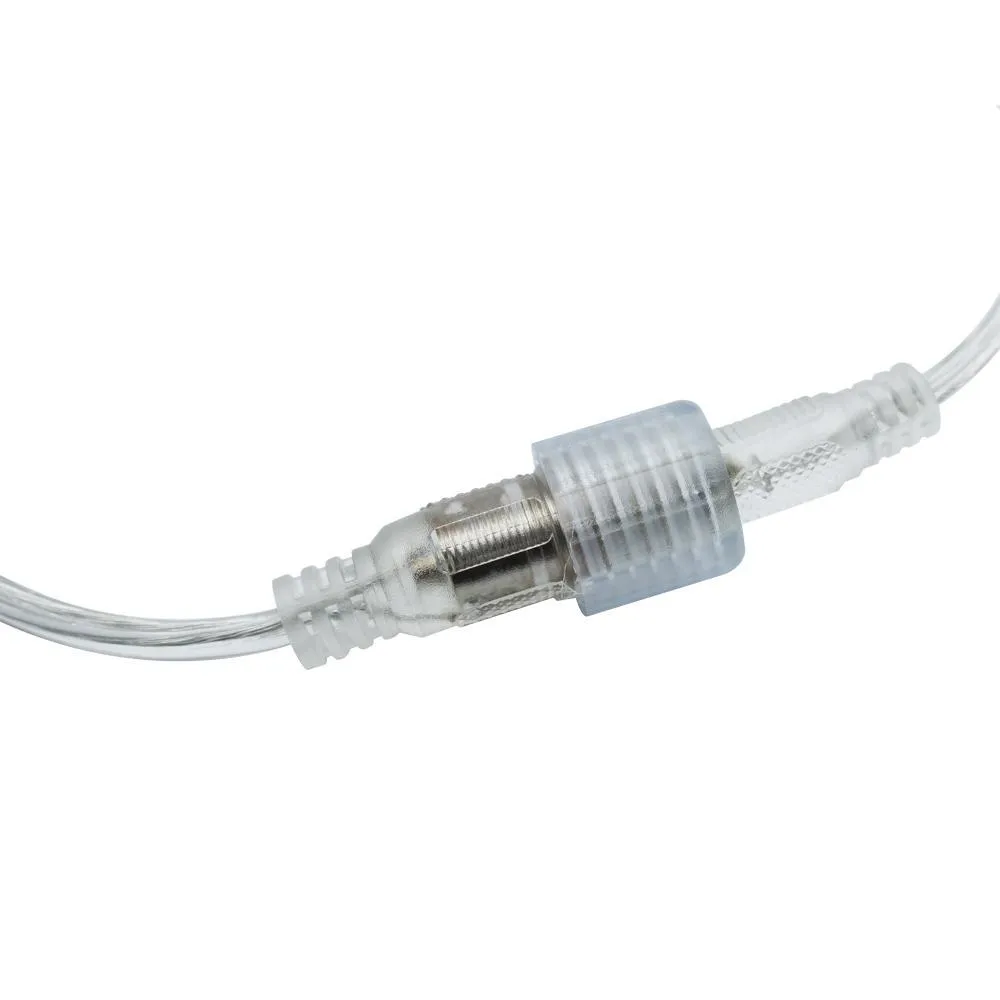

2. coming with transparent waterproof connectors on the two ends (from profile),

and the strips can be connected directly, max 5pcs.
